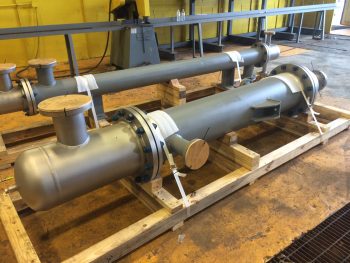

Custom Designed Heat Exchangers 4-6 Weeks Shipment
When a quick delivery really counts, trust Perry’s Rapid Production Process (RPP) for on-time delivery. We back our commitment with a guaranteed 10% discount if we fail to ship on time. The guaranteed discount is based on material availability at time of order. Perry Products will verify that quoted products are available under the RPP as part of the order acknowledgement process.
Email: sales@perryproducts.com
Program Details
|
Mechanical Design |
|||||
|
Design Standards: |
Standard design meets ASME VIII/D and/or TEMA (R/C/B) . Other industry standard such as API and PIP will be considered as necessary. | ||||
|
Materials of Construction: |
Carbon Steel, 304/304L or 316/316L. Other materials may be eligible. Consult the factory. | ||||
|
Design Temperature: |
Carbon Steel at -20F to 600F, and Stainless Steel at -55F to 600F | ||||
|
Diameter and Length: |
4-24” diameter, up to 30’ long | ||||
|
Tubes: |
Welded Wall; Seamless – check with factory | ||||
|
Flanges: |
Weld Neck, Slip On or Lap Joint based on material availability and design requirements | ||||
|
Corrosion Allowance: |
Carbon Steel = 1/16 – 1/8”, Stainless Steel = 0” | ||||
|
Pressure Range: |
For maximum allowable design pressure, see table below. | ||||
Standard Options
Inorganic Zinc Shop Primer, Glass Bead Blasted Stainless Steel, Vertical or Horizontal Construction, Seamless Tubes (when available from stock), Insulation Rings/Clips, Spot/Full Radiography, Thermal Design, and more. Check with the factory for availability of options.
24-Hour Quote
Perry Products is committed to providing a quote within one business day for all requests for proposals using the RPP unless thermal design is required. Thermal design may require additional time. For emergency thermal design assistance, call (609) 288-4069.
If the request is received before noon EST, Perry Products will make every effort to honor requests for same day proposals. Our estimators may even be able to provide a price over the phone.
Options that Extend Lead Time
| Options |
Days |
| Contracted Coating or Paint (lead time varies with paint system) | 5-15 |
| Tube lengths over 20’ (subject to availability of tubes) | 1-2 |
| Seal or Strength Welded Tubes |
5 |
| Stacked Exchangers | 5-7 |
| Kettle | 5-15 |
| Non-Standard Weld Procedures | Varies |
| Alternate Materials (317L, 321, Hastelloy, Titanium, Duplex, Copper/Nickel Alloys) | Varies |
| Rolled and Welded Shell | Varies |
| Specification Requirements Other Than ASME VIII/D1 and TEMA | Varies |
Maximum Allowable Design Pressure (PSIG)
|
Diameter |
C/S |
304/304L |
316/316L |
|
24 |
575 |
550 |
600 |
|
20 |
650 |
550 |
600 |
|
18 |
700 |
550 |
600 |
|
16 |
800 |
800 |
850 |
|
14 |
900 |
800 |
900 |
|
12 |
1000 |
800 |
900 |
|
10 |
1200 |
1200 |
1300 |
|
8 |
1500 |
1200 |
1300 |
|
6 |
1600 |
1200 |
1300 |
|
4 |
1600 |
1200 |
1300 |
